MIL-G-85231 Guided Weapon Control Group Ok-293A/AwwThis specification establishes the design, performance, and acceptance requirements for the OK-293A/AWW Control Group, Guided Weapon, herein after referred to as the control group. The control group consists of Control, Guided Weapon C-9743A/AWW \(Joystick\) and Convertor, Control Signals C-3248A/AWW \(Electronic Package\). The control group is to be located in the aircraft and is to interface with the Guided Weapon Control-Monitor Sets AN/AWW-7B, or AN/AWW-9 \(Pod\) to provide post-launch cockpit control for retargeting and steering of the WALLEYE Data Link Guided Weapon. The control group also provides proportional dc voltage inputs to the AN/ASN-91 computer.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17


MIL-G-85231(AS)

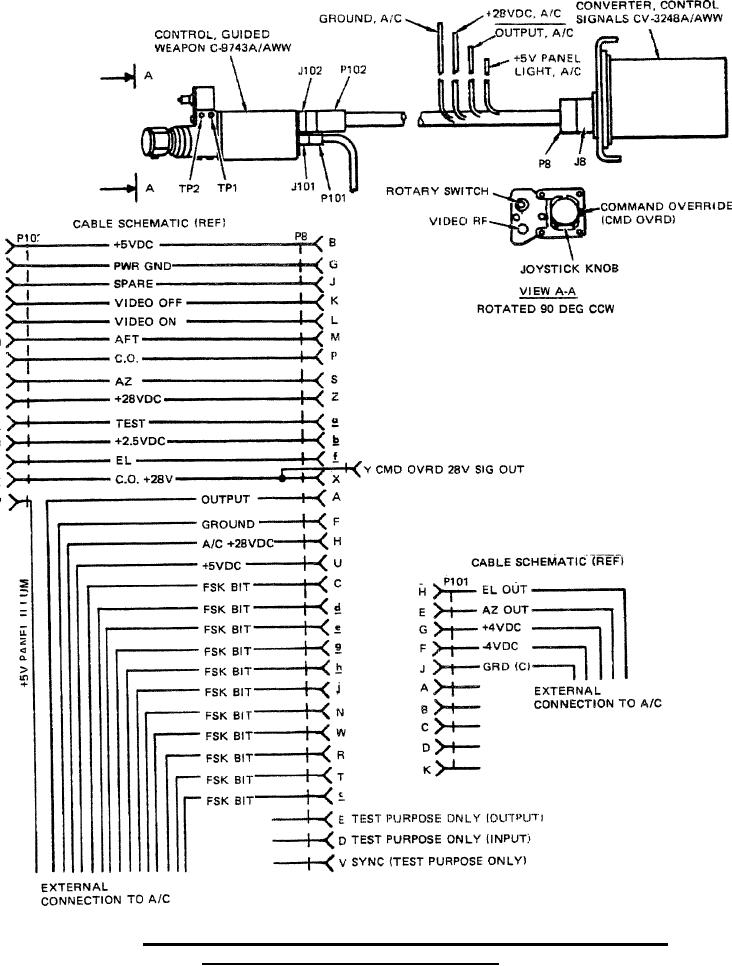

FIGURE 1. Electrical schematic showing interface connection between
joystick and electronic package.
